PREMIUM ABRASIVE

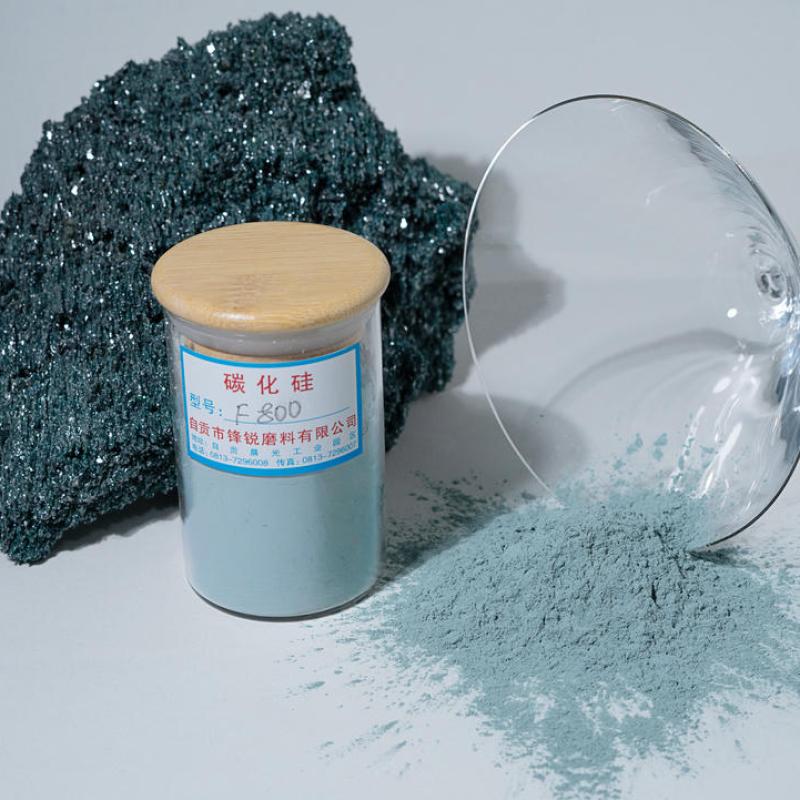

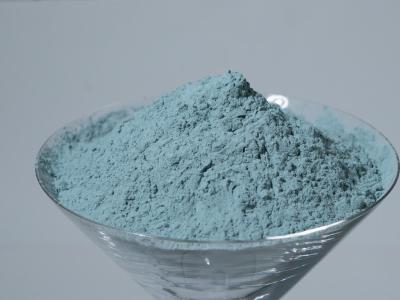

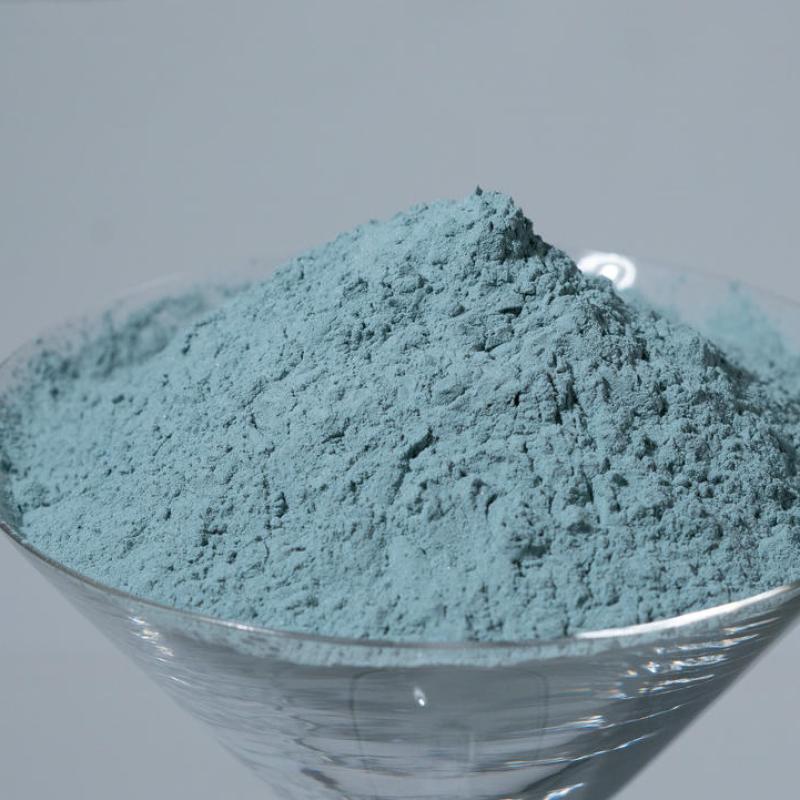

F800

Silicon Carbide Grain for Industrial Applications

Purity 90% min Silicon Carbide
Industry Iron & Steel Manufacturing
Form Grain/Powder
Origin Domestically Produced (USA)

Product Overview

High-quality silicon carbide material designed for industrial applications with superior performance characteristics.

Key Benefits

  • Prime source of silicon and carbon
  • Powerful deoxidizing effect
  • Low nitrogen and sulfur content
  • Enhances furnace lining life
  • Efficient slag removal

ISO Certified

ISO 9001 / 14001 / 45001

Premium Quality

Rigorous testing standards

Fast Delivery

Reliable logistics network

Expert Support

24/7 technical assistance

Product Detailed

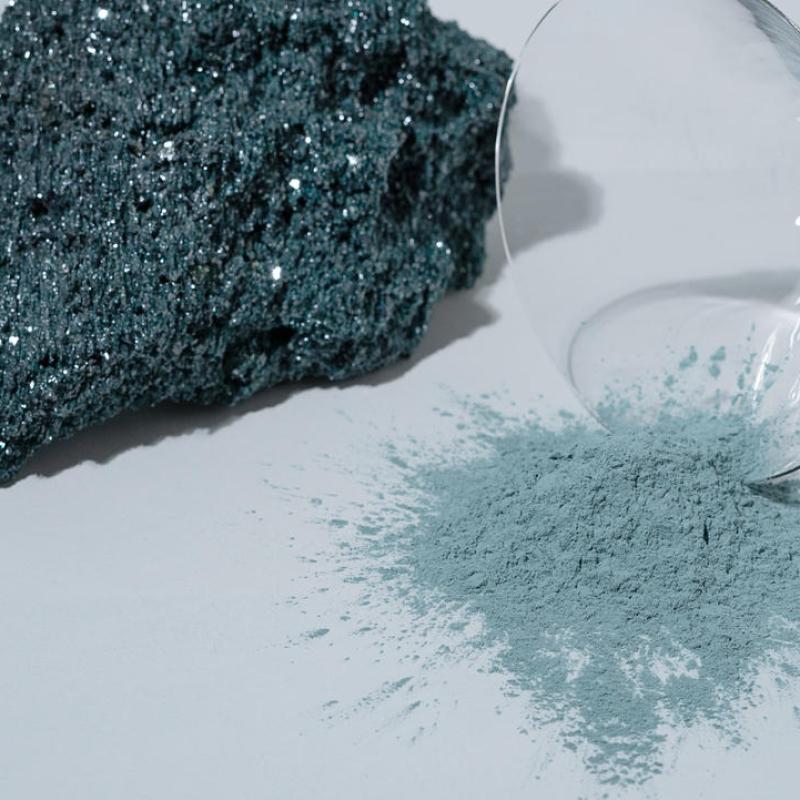

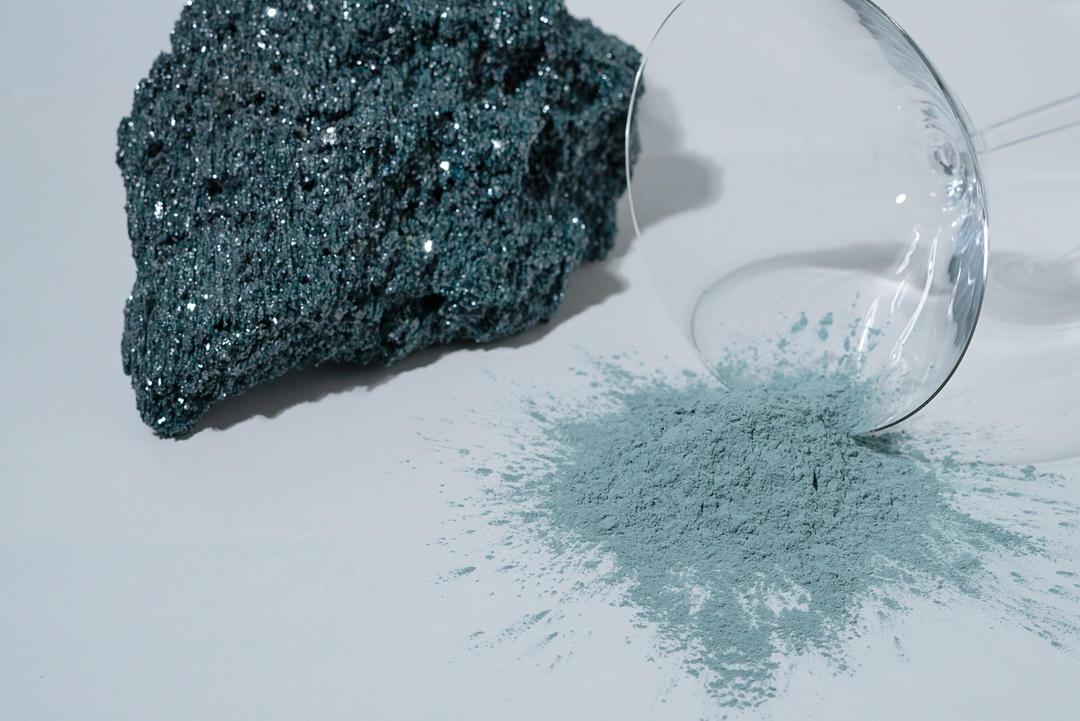

The black crystal silicon carbide with high density produced in our plant is made from high purity quartz sand and petroleum coke. The products are melted through high temperature up to 2500°C in the electronic furnace. The products have high hardness good thermal endurance wear resistance, radiation resistance, thermal shock resistance, and good electrical and thermal conductivity.

Characteristic

  • (1) Large melting furnace, longer melting time, lead to more crystallization, bigger crystals, higher purity and less impurities in producing Silicon carbide.
  • (2) Character of Silicon carbide: Good hardness, longer life.
  • (3) Chemical washed and water washed good cleanness.
  • (4) Special treated for Silicon carbide get higher purity, better toughness, and better grinding effect.

Application

Silicon carbide can be used as metallurgical deoxidizer and high temperature resistant materials in smelting.

Silicon carbide can also be used as abrasive materials, which can be used to make abrasive tools, such as grinding wheels, oilstones, grinding head and so on.

Silicon carbide is a new kind of reinforced steelmaking deoxidizing agent and ideal thermal insulating agent. It is used for deoxidizing. The usage dose is 14kg/t can make electricity consumption to reduce 15-20kw/h and time to reduce 15-20min per furnace to raise productivity rate to 8-10%.

Micronized Particle Size Composition Comparison Table

Comparison of particle size standards across China GB-2476-83, GB/T 2481.2-1998, and Japan JISR6001-1987

China

GB-2476-83

Grade Size Range (μm)
W6363-50
W5050-40
W4040-28
W2828-20
W2020-14
W1414-10
W1010-7
W77-5
W55-3.5

China

GB/T 2481.2-1998

Grade ds50 (μm)
F23053 ± 3.0
F24044.5 ± 2.0
F28036.5 ± 1.5
F32029.2 ± 1.5
F36022.8 ± 1.5
F40017.3 ± 1.5
F50012.8 ± 1.0
F6009.3 ± 1.0
F8006.5 ± 1.0
F10004.5 ± 0.8

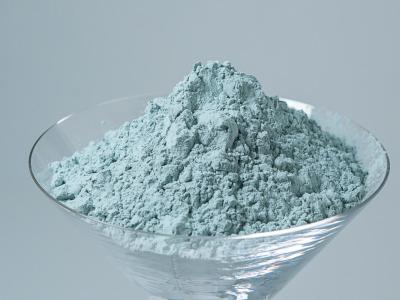

F12003.0 ± 0.5

Japan

JISR6001-1987

Grade ds50 (μm)
#24057.0 ± 3.0
#28048.0 ± 3.0
#32040.0 ± 2.5
#36035.0 ± 2.0
#40030.0 ± 2.0
#50025.0 ± 2.0
#60020.0 ± 1.5
#70017.0 ± 1.3
#80014.0 ± 1.0
#100011.5 ± 1.0
#12009.5 ± 0.8
#15008.0 ± 0.6
#20006.7 ± 0.6
#25005.5 ± 0.5
#30004.0 ± 0.5
#40003.0 ± 0.4
#60002.0 ± 0.4
#80001.2 ± 0.3
